Profile Drawings for Safety Profile Knives
Profiles 99 to 131

These supporting drawings show the standard profile knives available for the safety profile cutter blocks listed on our product pages.

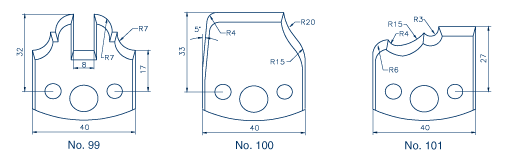

40 x 4.0mm Profile Nos. 99, 100 & 101

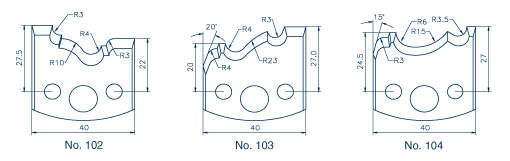

40 x 4.0mm Profile Nos. 102, 103 & 104

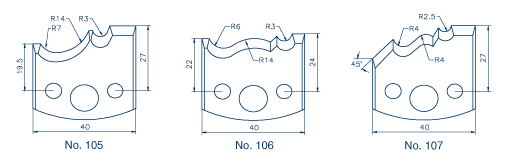

40 x 4.0mm Profile Nos. 105, 106 & 107

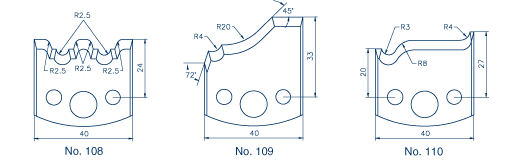

40 x 4.0mm Profile Nos. 108, 109 & 110

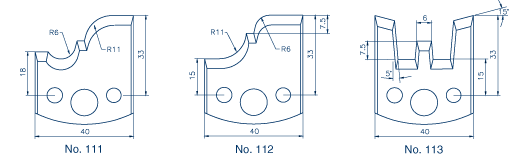

40 x 4.0mm Profile Nos. 111, 112 & 113

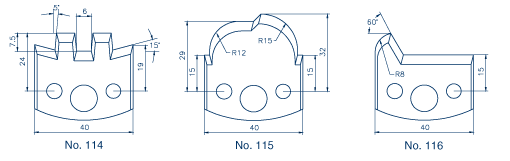

40 x 4.0mm Profile Nos. 114, 115 & 116

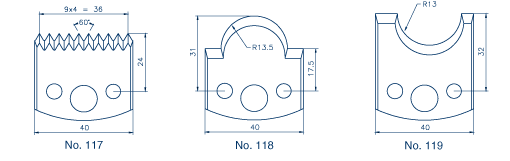

40 x 4.0mm Profile Nos. 117, 118 & 119

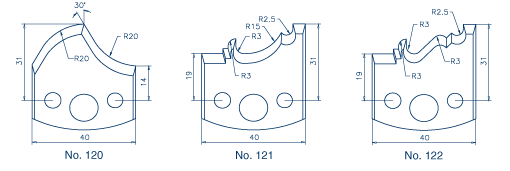

40 x 4.0mm Profile Nos. 120, 121 & 122

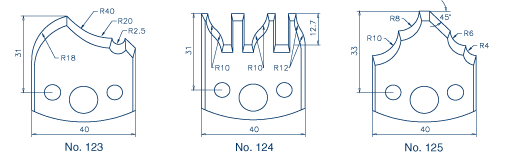

40 x 4.0mm Profile Nos. 123, 124 & 125

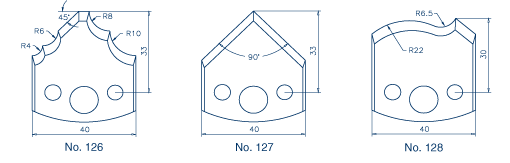

40 x 4.0mm Profile Nos. 126, 127 & 128

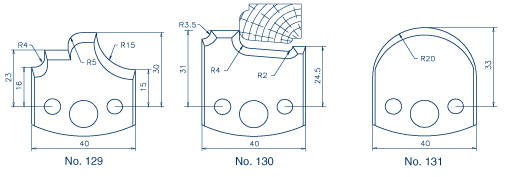

40 x 4.0mm Profile Nos. 129, 130 & 131
